แผงฉีดทำความสะอาดห้อง

ภาพรวม:

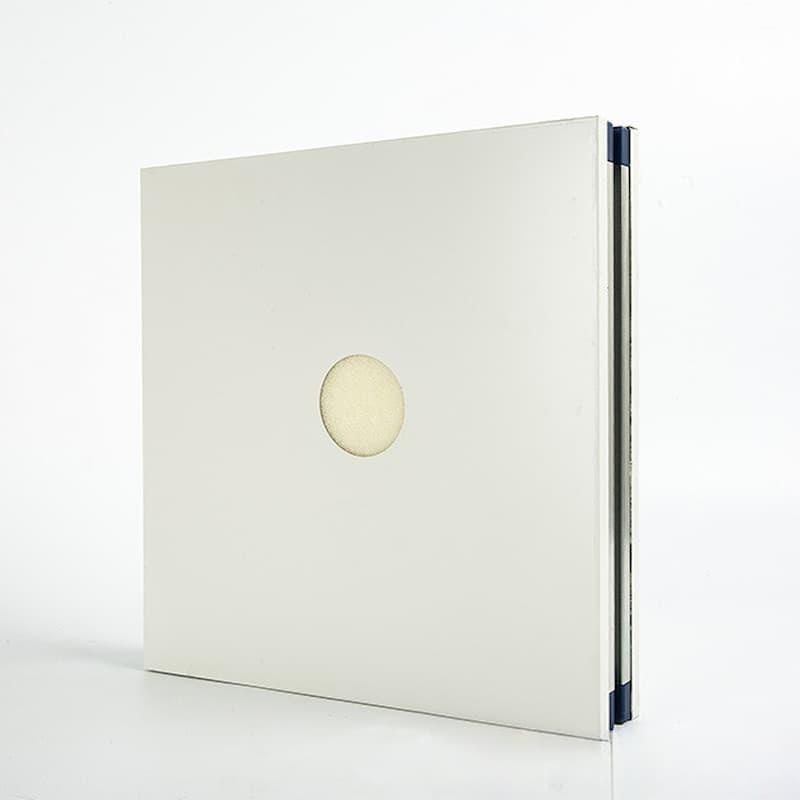

แผงโพลียูรีเทนแบบฉีดเป็นแผงแซนวิชประสิทธิภาพสูงและประหยัดพลังงานรูปแบบใหม่ วัสดุหลักเต็มไปด้วยฟองภายในและมีคุณสมบัติเป็นฉนวนความร้อนได้ดี มีการใช้กันอย่างแพร่หลายในอุตสาหกรรมยา โรงพยาบาล อุตสาหกรรมอาหาร อุตสาหกรรมเคมี ฯลฯ

  • แหล่งกำเนิดสินค้า:

    China
  • การจัดส่งสินค้าพอร์ต:

    Shanghai
  • เวลานำ:

    25

สินค้าใหม่

  • รายละเอียดสินค้า

รายละเอียดเบื้องต้น:

วัสดุแซนวิชของแผงโพลียูรีเทนแบบฉีดแบ่งออกเป็น PUR และ PIR โครงสร้างของแผงทั้งสองนั้นแตกต่างกัน กรอบของแผง PUR ที่ฉีดอาจเป็นโครงอลูมิเนียมหรือโครงเหล็ก การเชื่อมต่อระหว่างแผงทั้งสองนั้นเชื่อมต่อกันด้วยอลูมิเนียมตรงกลาง แผง PIR แบบฉีดไม่มีกรอบ และกระบวนการผลิตทั้งหมดเป็นแบบอัตโนมัติและต่อเนื่อง แผงโพลียูรีเทนแบบฉีดมีสองประเภทมีระดับการป้องกันอัคคีภัยที่แตกต่างกัน ประสิทธิภาพการเผาไหม้ของ PUR คือ B2 และประสิทธิภาพการเผาไหม้ของ PIR คือ เกรด B1 วัสดุภายนอกของแผงโพลียูรีเทนแบบฉีดคือแผงเหล็กชุบสังกะสีเคลือบ 0.5 มม. - 0.8 มม. ยิ่งความหนาหนาเท่าไรก็ยิ่งมีความเรียบมากขึ้นเท่านั้น



ภาพรายละเอียด:




ข้อมูลจำเพาะของผลิตภัณฑ์

ระบบถ่ายเทความร้อน

0.018~0.024w/ ( . . เค)


การใช้งาน


ซีเครื่องปรับอากาศ ถังเคมี และสาขาอื่นๆ



สี

RAL 9002/9010 ปรับแต่งได้

โครงสร้าง

โครงสร้างร่องนูนเฉพาะ ระบายอากาศได้ดี

คะแนนไฟ

พียูอาร์ บี2 PIR B1
