Project Case: Engineering a 2026 High-Load FFU Ceiling Grid for South Korea's Gigafabs

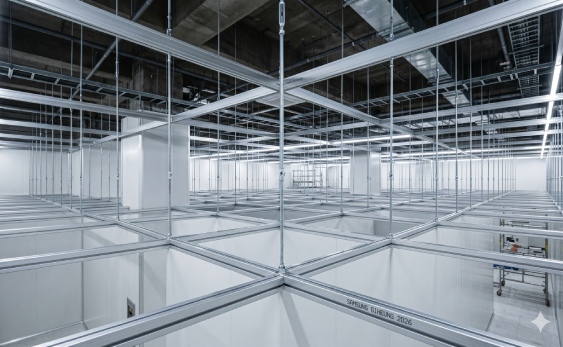

In the ultra-competitive semiconductor corridors of Pyeongtaek and Yongin, a leading cleanroom manufacturer like WONCLEAN is redefined by the mastery of structural dynamics. Our latest 2026 project in South Korea involves a massive facility expansion where the integration of advanced cleanroom wall panels and a high-load clean room ceiling system provided the foundation for next-generation lithography. By deploying the proprietary 6063-T5 cleanroom FFU ceiling grid, the facility successfully achieved ultra-low Airborne Molecular Contamination (AMC) levels, meeting the rigorous new ISO 14644-1:2026 standards.
How Does the 6063-T5 Aluminum Grid Support 2026 High-Density FFU Arrays?

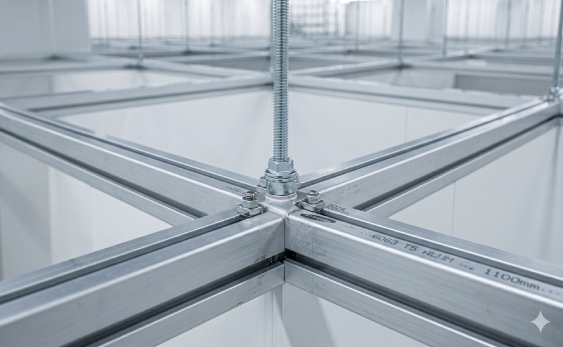

The 2026 South Korea project blueprints required a ceiling capable of supporting full FFU coverage. Our solution centers on a heavy-duty 6063-T5 aluminum framework. This high-tensile alloy ensures that long-span main beams remain deflection-free under the weight of EC-motor FFUs. The secret lies in the precision-engineered L, T, and Cross connectors identified in our 2026 material bill, which create a rigid, interlocking matrix. This design eliminates the micro-gaps that often compromise airtightness in high-pressure GMP Grade A environments.
What Are the Core Material Specifications for the South Korea FFU Grid Project?
To maintain industry-leading authority, we have extracted the exact technical bill of quantities (BOQ) from the 2026 South Korea facility expansion. These parameters reflect the shift toward modular, high-load cleanroom components required for 2nm process stability.
| Grid Component | 2026 Project Specification | Key Performance Data |
|---|---|---|
| Main/Cross Tee Grid | 6063-T5 Aluminum (1100mm/1140mm units) | Deflection < 1/1000 under 120kg/m² load |
| Interlocking Connectors | Die-cast Cross, T, and L-type Joints | Zero-gap alignment for gel-seal FFUs |
| Leveling System | M10 Rhomboid Screws + Level Regulator | Precision adjustment accuracy within ±0.5mm |
| Suspension Grid | M10 Galvanized Steel Rods & Expansion Bolts | Anti-seismic stability compliant with KDS 41 |
| Infill Panels | Aluminum Honeycomb Sandwich | Class A Fire Rated & Anti-static Coating |
Why is the Precision of M10 Leveling Systems Critical for 2026 Cleanroom Success?
As semiconductor nodes shrink, the tolerance for ceiling unevenness has reached near-zero. Our 2026 South Korea project utilized over 1,600 precision level regulators and M10 expansion bolts to ensure the entire ceiling plane remained perfectly horizontal. This level of accuracy is vital for the automated material handling systems (AMHS) that travel along the tracks. Any deviation can lead to particulate shedding, directly impacting fab yield and GMP compliance.
Which 2026 GMP Trends Are Redefining Walkable Ceiling Systems?
The 2026 GMP updates emphasize "Zero-Interruption Maintenance." Modern South Korean fabs now demand "walkable" ceiling grids that allow technicians to perform maintenance from above without entering the sterile zone. Our FFU ceiling grid is engineered with a high safety factor, supporting concentrated loads of up to 200kg at each node intersection. This minimizes contamination risks during FFU filter replacements, keeping the cleanroom operational 24/7.
