Prefabricated Laboratory Units for Pharma Environmental Monitoring and Sample Preparation

Why It Matters

A QC Support Lab Still Belongs to the Contamination Control Strategy

For environmental monitoring and sample preparation, the main risk is rarely one single component. The risk usually appears at interfaces: a door that opens into the wrong pressure direction, a wall penetration that is hard to clean, a return air grille that conflicts with workbench layout, a pass-through that creates a hidden transfer shortcut, or a utility connection that must be reworked after the laboratory arrives on site.

EU GMP Annex 1 places strong emphasis on contamination control strategy for sterile manufacturing environments. A prefabricated laboratory unit should therefore be designed as part of that strategy, not as a detached room product. Its cleanroom wall panels, doors, ceiling modules, HVAC terminals, pressure instruments, electrical points, drains where applicable and cleaning details must support the operating procedure that the quality team will later defend during audit.

Engineering Logic

Prefabrication Works When the Interfaces Are Frozen Early

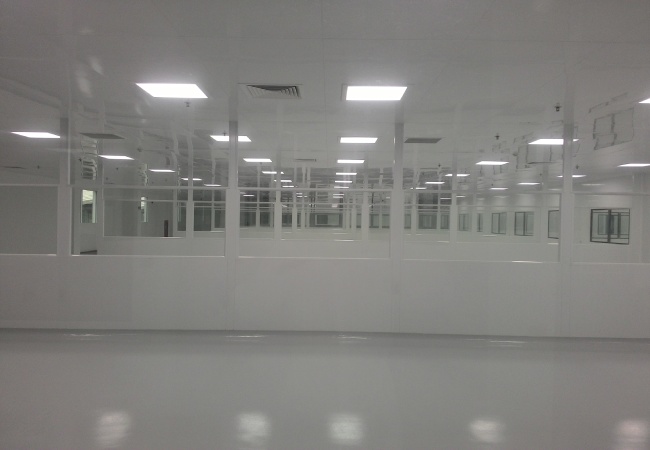

The advantage of prefabricated laboratory units is not simply faster wall installation. The real advantage is earlier coordination. If the owner, HVAC designer, cleanroom envelope supplier and equipment user agree on the interface map before manufacturing, many late site conflicts disappear. Wall panel openings can be factory-planned, door swings can match sample flow, ceiling panels can align with diffusers and lighting, and service routes can be reserved where technicians can reach them.

For environmental monitoring labs, two layouts often cause problems. The first is a compact room where workbenches block return air or cleaning access. The second is a narrow support corridor where pass-throughs, door interlocks, pressure displays and emergency routes compete for the same wall space. Wonclean's cleanroom wall system should be treated as a coordination platform: panels, doors, windows and penetrations are locked together rather than selected as separate finish items.

Envelope Design

Wall Panels, Doors and Windows Must Support Cleaning and Observation

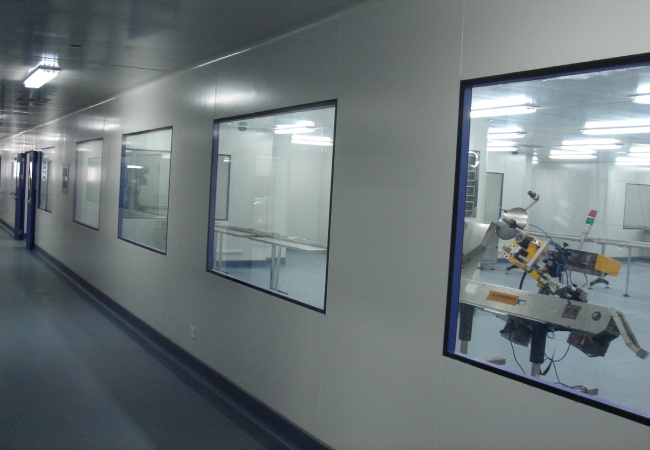

A prefabricated pharma laboratory unit normally needs more observation than a simple storage room. Operators may need to check instrument status, sample staging or room condition without opening a door. Flush observation windows reduce unnecessary entry, but they also introduce sealing details that must be coordinated with wall panel joints, frame profiles and cleaning procedures.

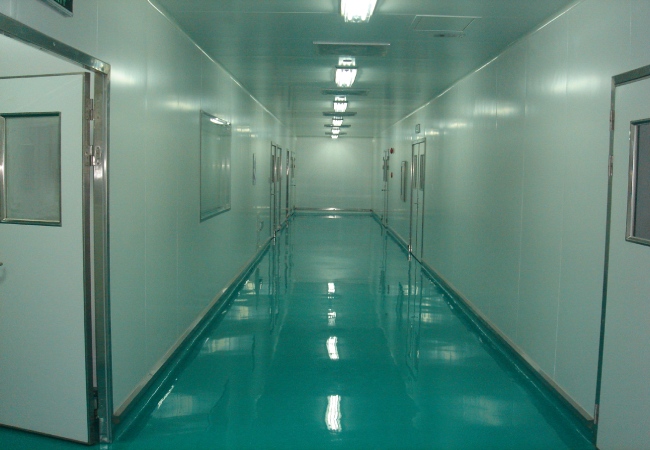

Cleanroom doors should be selected according to pressure direction, traffic frequency, cleaning chemistry and room function. Door gaskets, sweeps, window frames, locksets and hinges all influence leakage and cleaning. For sample preparation, the important design question is not only whether the door can close; it is whether the door, adjacent panel, threshold and pressure monitor create a repeatable operating boundary.

Where wet cleaning or disinfectant exposure is expected, panel skin, coating, sealant and corner details should be reviewed against the facility's cleaning agents. The article title targets prefabricated laboratory units, but the performance depends on small cleanroom wall material decisions that appear long before the unit is shipped.

HVAC and Monitoring

Do Not Treat HVAC as a Separate Add-On

ISO 14644-4 connects cleanroom design with airflow concept, installation and start-up. In practice, this means the prefabricated unit should be shipped with enough design information for airflow balancing and qualification. Supply terminals, return paths, pressure taps, sensor positions and access panels must be visible in the coordination model. If these are left until site installation, the modular advantage is weakened.

For environmental monitoring and sample preparation, the HVAC design usually has to balance three needs: protect the sample from room contamination, protect adjacent production areas from uncontrolled transfer, and keep operators comfortable enough for accurate repetitive work. The correct pressure cascade depends on the risk assessment. Positive pressure may protect clean activities; negative pressure may be required for certain hazardous or containment-related operations. The article should not promise one universal pressure direction.

Procurement Checklist

What to Confirm Before Manufacturing Starts

• Room list, cleanroom class target and operating state for each room.
• Personnel, sample, waste and cleaning flows, including transfer points and door interlocks where needed.
• Panel type, panel thickness, surface finish, corner details, window frames and sealant strategy.
• HVAC airflow concept, HEPA terminal locations, return paths, balancing dampers and sensor positions.
• Utility penetration schedule for power, data, gases, water, drains, exhaust and future expansion.
• Factory inspection, site acceptance, ISO 14644 testing and user SOP responsibilities.
